Standards

Wi-Fi 4
IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds

N300
2.4 GHz: 300 Mbps (802.11n)

WiFi Range

4 Bedroom Houses

2× Detachable 9 dBi High-Gain Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

High-Power FEM
Improves transmission power to strengthen signal coverage

WiFi Capacity

Legacy

Working Modes

Router Mode
Access Point Mode
Range Extender Mode

Processor

Single-Core CPU

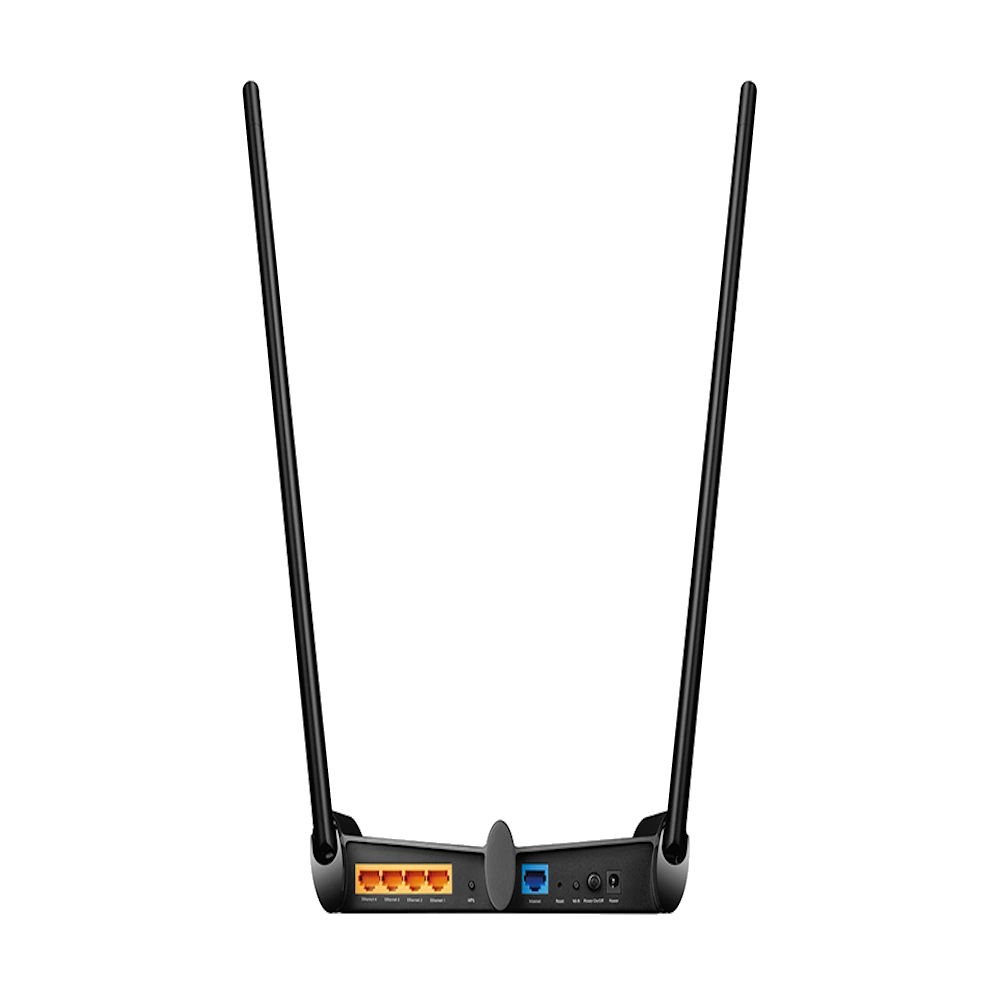

Ethernet Ports

1× 10/100 Mbps WAN Port
4× 10/100 Mbps LAN Ports

Buttons

Wi-Fi On/Off Button
Power On/Off Button
WPS Button
Reset Button

Power

12 V ⎓ 1 A

WiFi Encryption

WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)

Network Security

SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

Guest Network

1× 2.4 GHz Guest Network

Protocols

IPv4
IPv6

Parental Controls

URL Filtering
Time Controls

WAN Types

Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service

QoS by Device

NAT Forwarding

Virtual Server
Port Forwarding
Port Triggering
DMZ
UPnP

IPTV

IGMP Proxy
IGMP Snooping

DHCP

Address Reservation
DHCP Client List
Server

DDNS

NO-IP
DynDNS

Management

Tether App
Webpage
Check Web Emulator>

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications

FCC, CE, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

WiFi Transmission Power

CE:
<20dBm(2.4GHz)
FCC:
<30dBm

WiFi Reception Sensitivity

270M: -71dBm@10% PER
130M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -77dBm@10% PER
11M: -91dBm@8% PER
6M: -89dBm@10% PER
1M: -97dBm@8% PER

Dimensions (W×D×H)

9.0 × 7.5 × 1.9 in
(227.5 × 190 × 48.3mm)

Package Contents

Wi-Fi Router TL-WR841HP
מתאם חשמלי
RJ45 Ethernet כבל
מדריך התקנה
