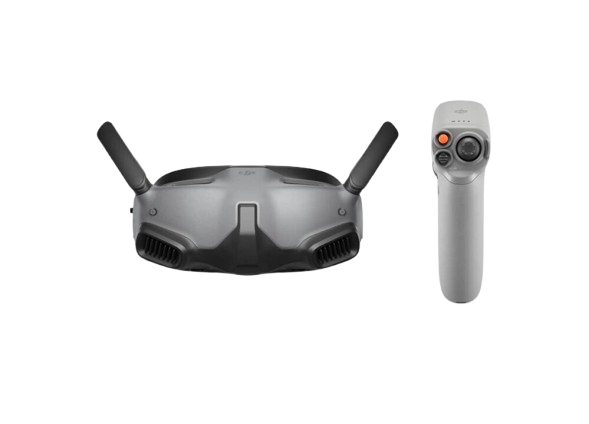

DJI Goggles Integra Motion Combo

DJI Goggles Integra

• Lightweight and Portable
• Integrated Design
• Micro-OLED Screens
• DJI O3+ Video Transmission
• HD Low-Latency

Soak up the sky with DJI Goggles Integra, and extend your experience with DJI Avata and DJI RC Motion 2 for acute control and immersive, first-person Flight.

Combined for Convenience

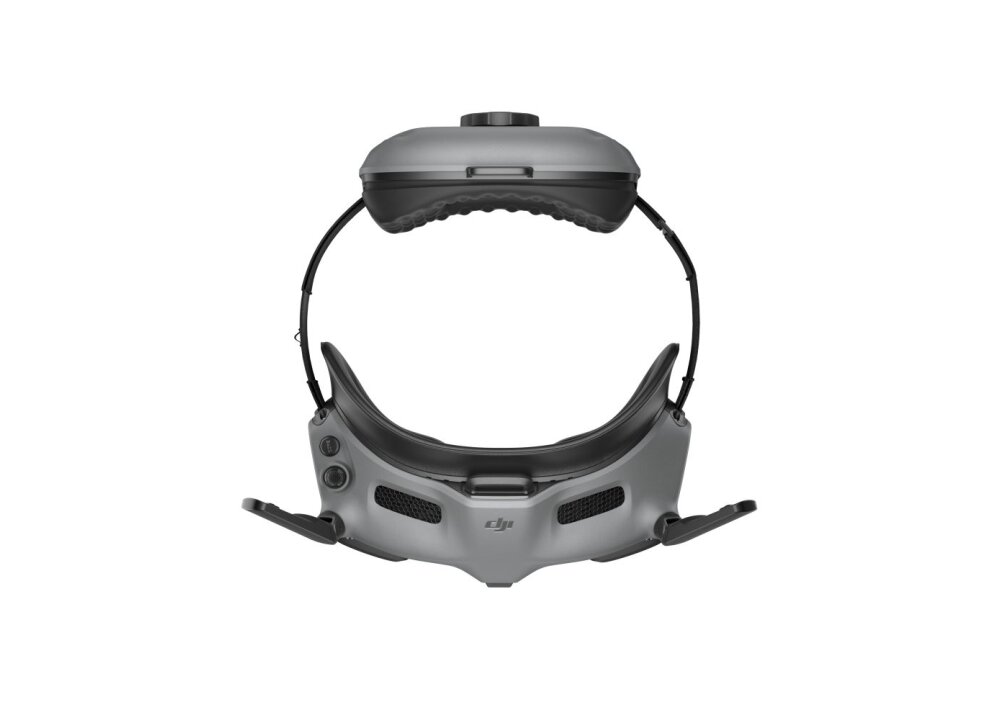

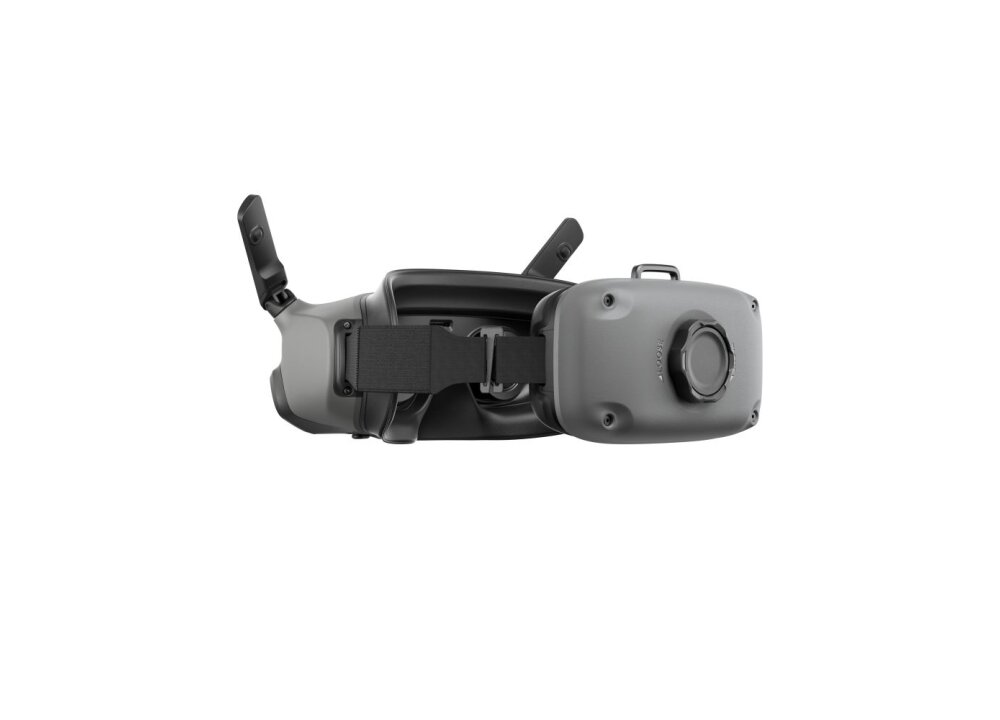

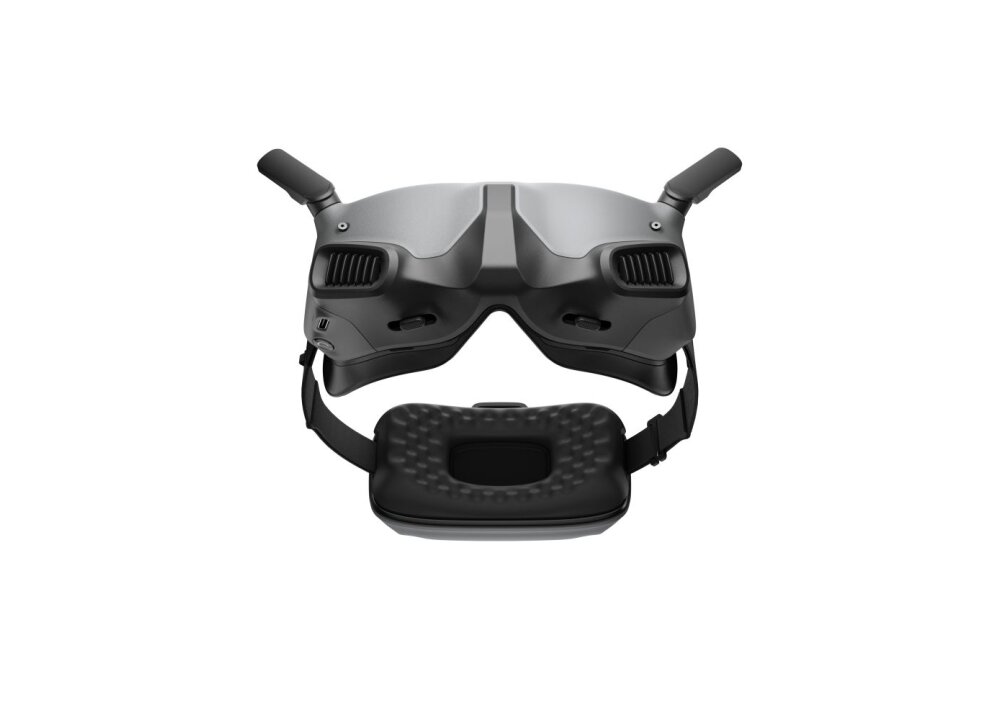

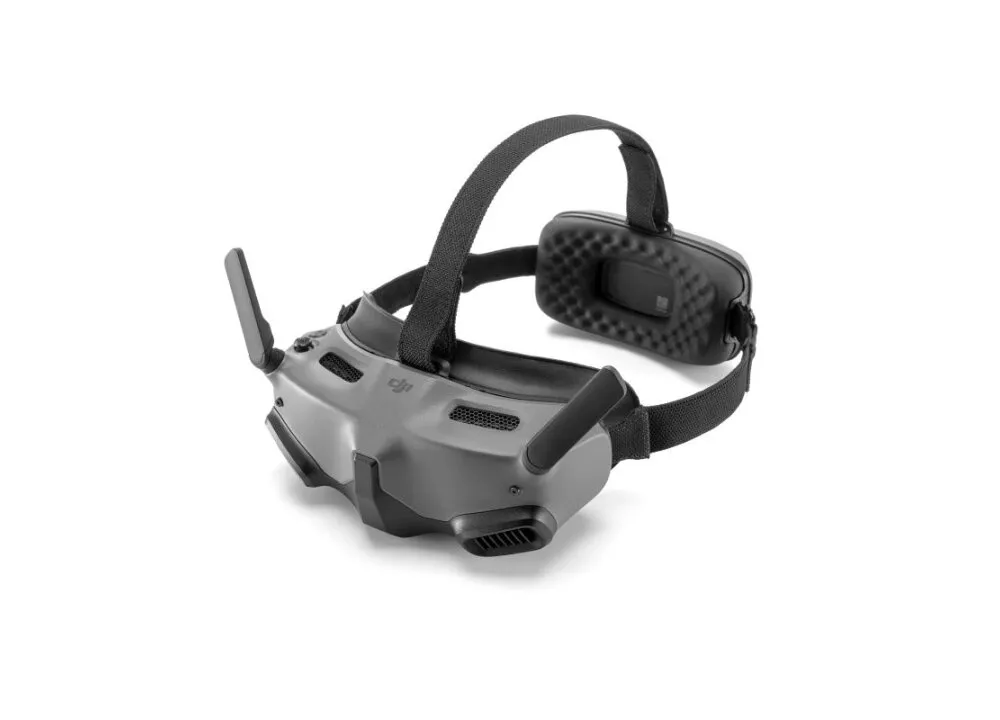

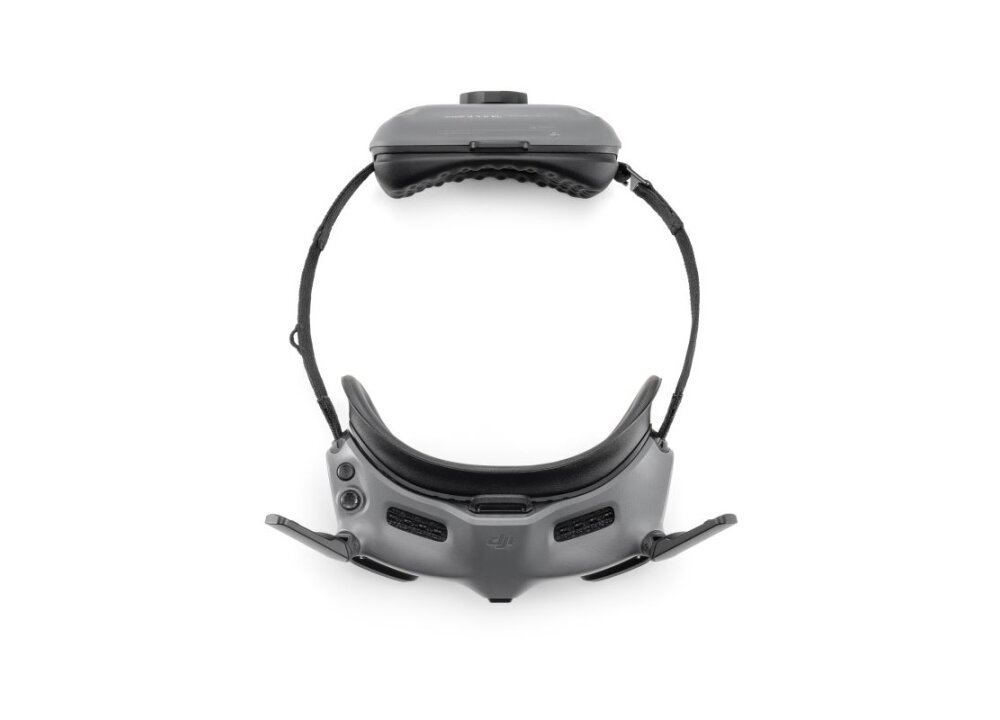

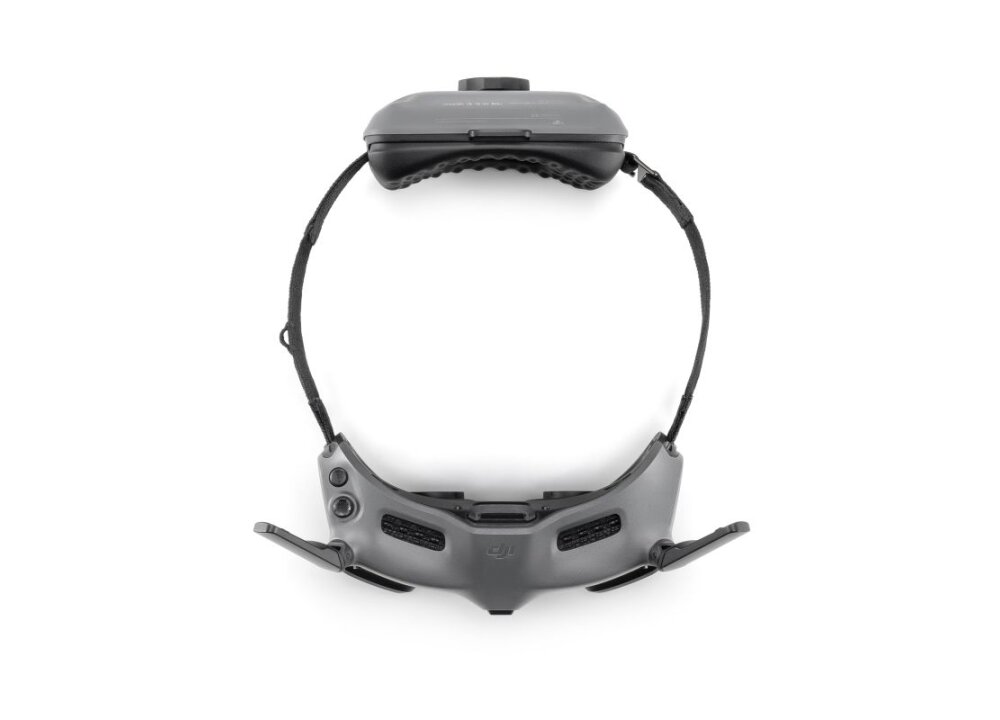

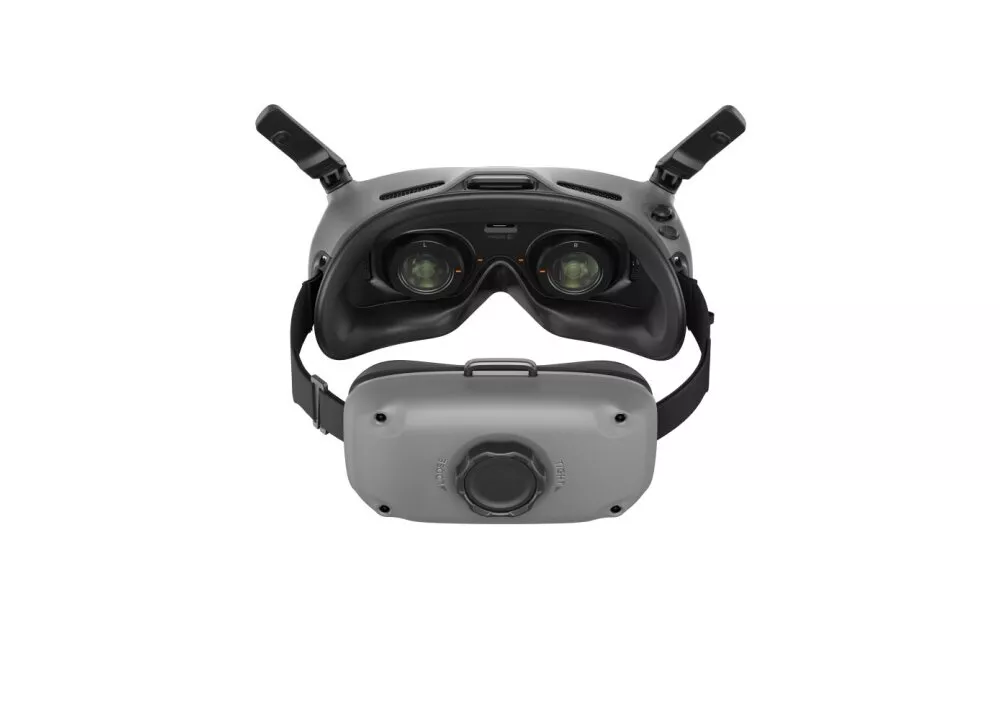

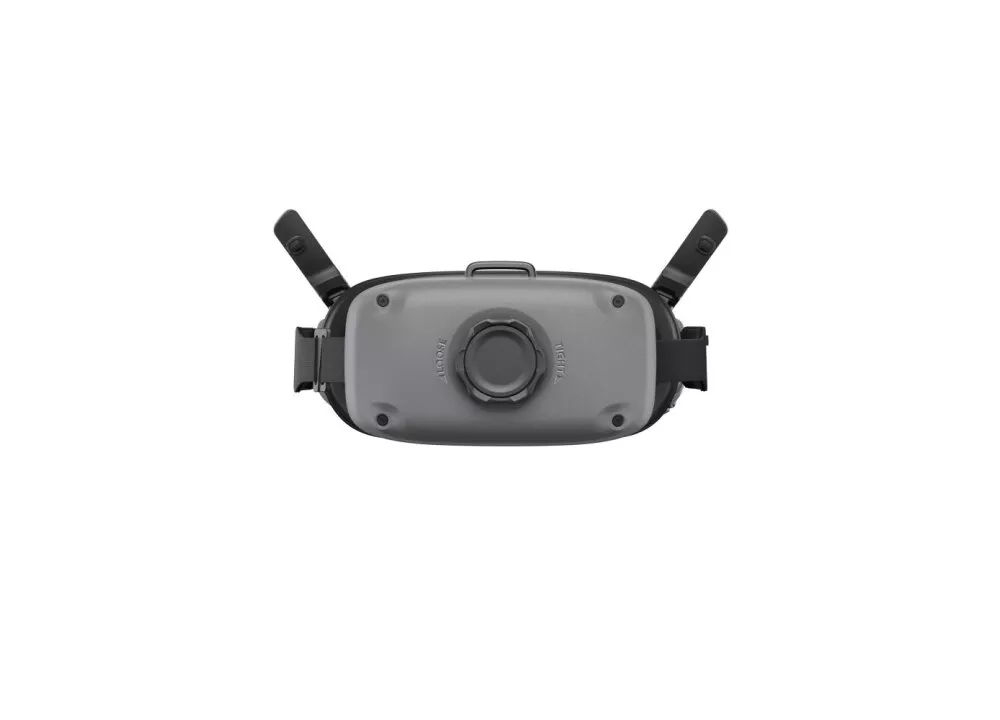

The lightweight DJI Goggles Integra adopts an integrated design that combines headband and battery into one, getting rid of pesky cables and allowing you to effortlessly take the goggles on and off.
The built-in battery headband feels lightweight, balanced, and comfortable to wear.
DJI Goggles Integra can be used while charging and will stay powered through several full-battery drone flights. So you can keep soaring all day.

• Total Weight Approx.: 410 g

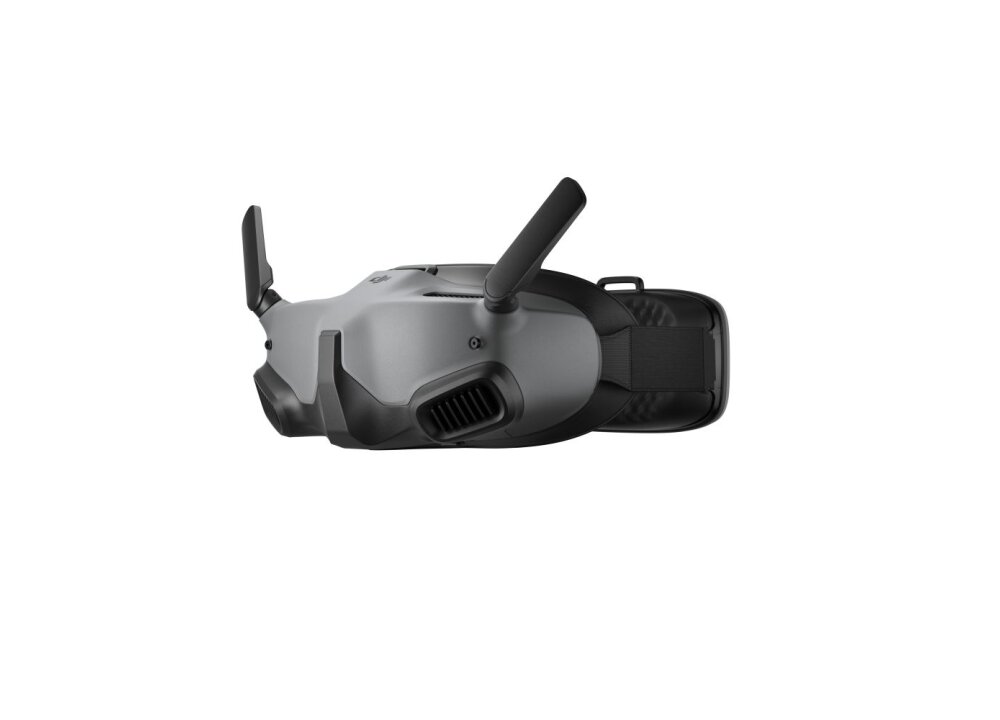

• Antenna Design: Foldable
• Max Operating Time: Two hours

HD Display

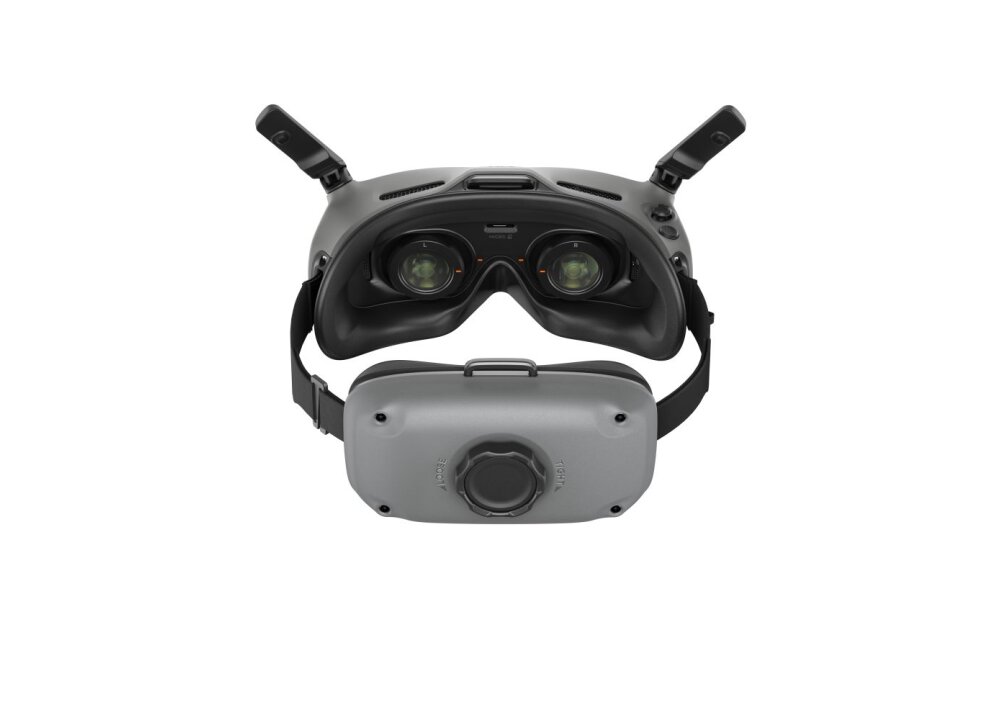

DJI Goggles Integra is equipped with two HD Micro-OLED screens to deliver true-to-life colors and highlight-shadow details. The high screen refresh rate presents the fun of flight in a smoother and more fantastic manner.

• Display Technology: Micro-OLED
• Screen Resolution: 1080p
• Max Brightness: 700 nits
• Max Screen Refresh Rate: 100 Hz
• Supported CODEC Formats: H.264 and H.265

TÜV Rheinland Low Blue Light Certification
DJI Goggles Integra presents HD display quality while protecting your eyes with a comfortable experience.

Ultra-Low Latency, Smooth, and Stable Video Transmission
DJI Goggles Integra is equipped with DJI O3+ video transmission, boasting latency as low as 30 ms. The goggles automatically switch between 2.4GHz and 5.8GHz frequency bands to keep a stable signal for a fluid, immersive HD viewing experience with minimal interference.

New SyncSmooth technology produces smooth, fluent video transmission for high-speed aerial photography. The tracking effect of the goggles display frame aligning with the video transmission frame is optimized to cut down video transmission latency and fluctuations. Viewing footage with DJI Goggles Integra is also easier on the eyes, effectively reducing visual fatigue and dizziness.

• Lowest Video Transmission Latency: 30 ms
• Auto Frequency Band Selection: 2.4 GHz or 5.8 GHz

Share the Sky
Connect DJI Goggles Integra with the DJI Fly app on your smartphone to display a real-time camera view to your goggles and smartphone simultaneously. Share the view with friends to enjoy stunning and immersive flight together.

DJI RC Motion 2

Immersive Motion Control
The powerful and intuitive DJI RC Motion 2 provides convenient and responsive control, allowing even beginners to quickly enjoy the fun of motion-based flight control.
With motion sensing technology, you can control the flight direction with just a slight turn of the wrist. In tandem with the joystick, you can easily navigate, maneuver, and explore the sky in a completely unique way.
When used with DJI Avata and DJI Goggles, the aircraft's flight direction will respond to your hand movements, delivering an immersive flight experience as if you were in the pilot seat.

Multifunctional and Intuitive
DJI RC Motion 2 is comfortable for extended use.
The accelerator, mode button, lock button, and many of DJI RC Motion 2’s other functions are optimized for single-handed use. Just point and fly.
Takeoff, land, accelerate, turn, reverse, strafe right or left, and more. Unfettered flight is just a button press away.

Multidirectional Operation
Altitude and direction control is even smoother with the DJI RC Motion 2's upgraded joystick. Takeoff and land with precise accuracy and richer dynamic movement, and even tackle more complex flight maneuvers such as darting left and right.
The accelerator features a new reverse function that allows you to fly backward in tight situations. Just back up the way you flew in and avoid a tight U-turn.
The FN dial makes adjusting the ISO, shutter, and other camera parameters a breeze. Quickly make adjustments without raising your hand to your goggles.

Note
Compared with the DJI Motion Controller, DJI RC Motion 2 adds an independent joystick for height control and left-right horizontal flight control; the accelerator supports backward flight control through being pushed forward; and the new FN dial can be used to control camera parameters, UI interaction, and more on the goggles.

Compatibility
Avata
Mavic 3 Classic
Mavic 3
Mavic 3 Cine
Mavic 3 Pro
Mavic 3 Pro Cine
Mini 3 Pro
Air 3

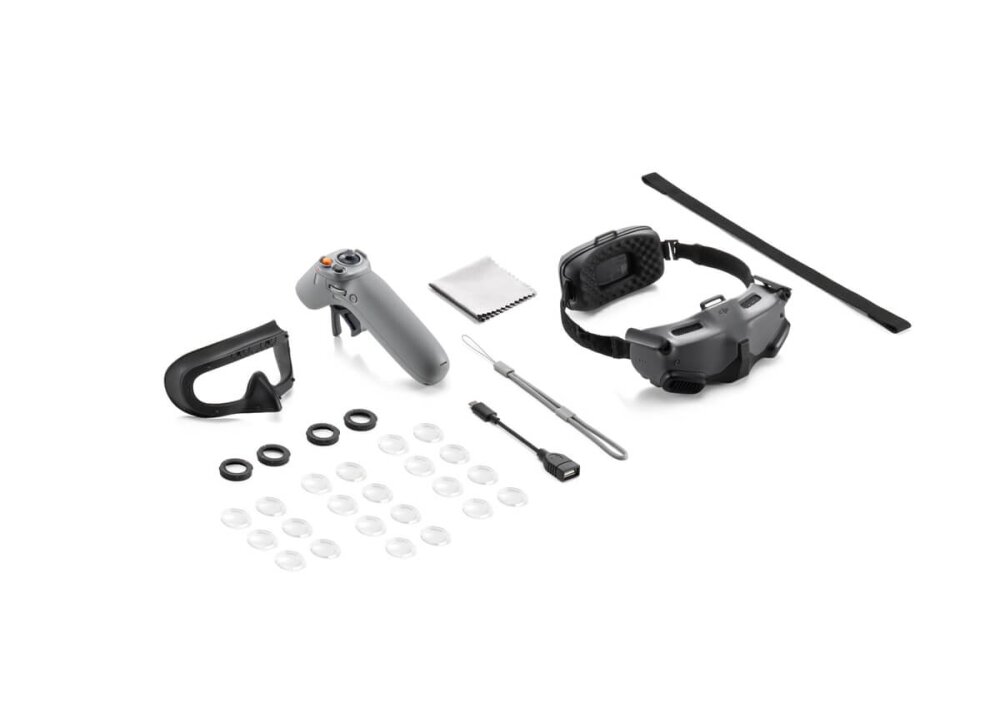

In the Box:
1x Goggles Integra
1x USB-C OTG Cable
2x Goggles Integra Eyeglass Frames (Pair)
11x Goggles Integra Corrective Lenses (Pair)
1x Goggles Integra Top Headband
1x Lens Cleaning Cloth
1x RC Motion 2
1x Lanyard

DJI Goggles Integra

General

Model
RCDS13

Weight
Approx. 410 g (battery included)

Dimensions (L×W×H)
With antennas folded: 170×104×74.44 mm
With antennas unfolded: 205×104×104 mm

Screen Size (single screen)
0.49-inch

Resolution (single screen)
1920×1080

Refresh Rate
Up to 100 Hz

IPD Range
56-72 mm

FOV (single screen)
44°

Video Recording Format
MOV

Supported Video Playback Formats
MP4, MOV (video formats: H.264, H.265; audio formats: AAC, PCM)

Operating Temperature
-10° to 40° C (14° to 104° F)

Power Input
Built-in battery

Supported SD Cards
microSD (up to 512 GB)

Recommended microSD Cards
SanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Lexar 1066x U3 V30 A2 64GB microSDXC
Lexar 1066x U3 V30 A2 128GB microSDXC
Lexar 1066x U3 V30 A2 256GB microSDXC
Lexar 1066x U3 V30 A2 512GB microSDXC
Kingston Canvas Go! Plus U3 V30 A2 64GB microSDXC
Kingston Canvas Go! Plus U3 V30 A2 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung EVO Plus U3 V30 A2 512GB microSDXC

Video Transmission

Video Transmission
When used with different aircraft, the goggles will automatically select the corresponding firmware to match the video transmission specification of the aircraft.
DJI Avata: O3+

Operating Frequency
2.4000-2.4835 GHz
5.725-5.850 GHz
The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.

Transmitter Power (EIRP)
2.4000-2.4835 GHz:
< 30 dBm (FCC)
< 20 dBm (CE/SRRC/MIC/KC)
5.725-5.850 GHz:
< 30 dBm (FCC)
< 23 dBm (SRRC)
< 14 dBm (CE/KC)

Transmission Latency
1080p/100fps: as low as 30 ms
1080p/60fps: as low as 40 ms
Measured in an open outdoor environment without interference. Actual data varies with different aircraft models.

Max Transmission Distance
When used with different aircraft, the goggles will automatically select the corresponding firmware to match the video transmission specification of the aircraft.

DJI Avata:
12 km (FCC)
6 km (CE/SRRC/MIC)
DJI O3 Air Unit:
10 km (FCC)
2 km (CE)
6 km (SRRC)
Measured in an open outdoor environment without interference. Actual data varies with operating environment.

Max Video Bitrate
50 Mbps
Measured in an open outdoor environment without interference. Actual data varies with operating environment.

Battery

Weight
Approx. 185 g (headband included)

Dimensions (L×W×H)
120×48.8×71 mm

Capacity
2450 mAh

Voltage
5.6-8.4 V

Type
Li-ion

Chemical System
LiNiMnCoO2

Energy
17.64 Wh

Charging Temperature
5° to 45° C (41° to 113° F)

Max Charging Power
15 W (charging when powered off)

Operating Time
Approx. 2 hours
Measured with an ambient temperature of 25° C (77° F), screen brightness at 4, connection to DJI Avata, the video transmission mode set to 1080p/100fps, head tracking off, and the goggles' battery fully charged and not supplying power to external devices such as Smartphones.

DJI RC Motion 2

General

Model
RM220

Weight
Approx. 170 g

Operating Frequency
2.4000-2.4835 GHz
5.725-5.850 GHz
The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.

Transmitter Power (EIRP)
2.4000-2.4835 GHz:
< 30 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.725-5.850 GHz:
< 30 dBm (FCC)
< 23 dBm (SRRC)
< 14 dBm (CE)

Max Transmission Distance (unobstructed, interference-free)
10 km (FCC)
6 km (CE/SRRC/MIC)
When used with different aircraft, the motion controller will automatically select the corresponding firmware to match the video transmission specification of the aircraft. Measured in an outdoor open environment without interference. Actual data varies with operating environment.

Operating Temperature
-10° to 40° C (14° to 104° F)

Operating Time
Approx. 5 hours
Measured with an ambient temperature of 25° C (77° F), when connected to DJI Avata, and in a stationary state.
